10kva 220v ac stabilizer voltage regulator/AVR

Product Description

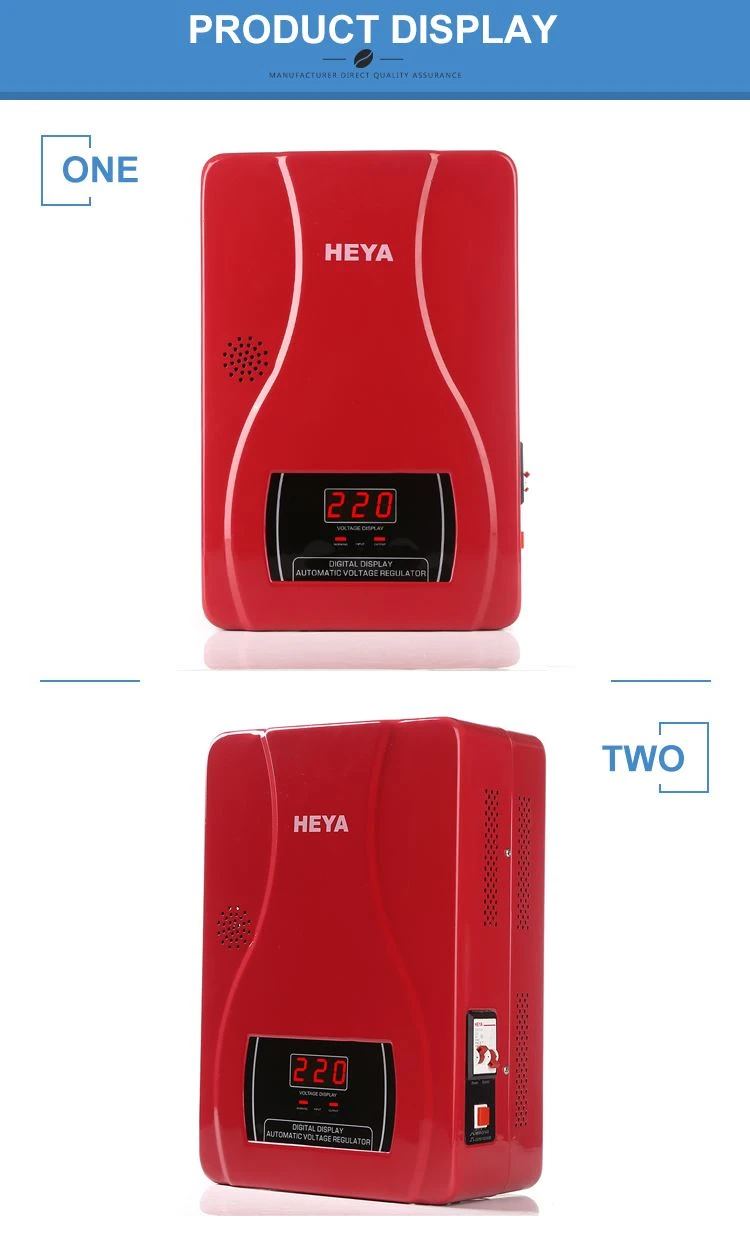

SRW-5000-D_01

SRW-5000-D_02

General

● SRW Series wall mounted LED relay type full automatic AC voltage regulator adopts the international advanced technology and intelligent CPU centralized control technology.

● It has the advantages of high efficiency, beautiful appearance and reliable performance and so on.

● All products have over voltage, delay, temperature and error production and also voltage two-way indication. All indicator gauges are digital display, it leaves you a brand-new impression.

● These high performance products are specialized for users of unstable voltage and precision electronic instruments and equipments.

● Compared with other like products, ours have a higher ratio of performance to price.

Product Parameter:

Model	SRW-500	SRW-1000	SRW-1500	SRW-2000	SRW-3000
	SRW-5000-D	SRW-8000-D		SRW-10000-D	SRW-12000-D
Nominal Power	500VA	1000VA	1500VA	2000VA	3000VA
	5000VA	8000VA		10000VA	12000VA
Power Factor	0.6-1.0
Input
Operating Voltage Range	A:70~285V, B:90~285V, C:125~285V
Regulation Voltage Range	A:80~260V, B:100~260V, C:140~260V
Frequency	50HZ
Connection Type	0.5~3KVA (Power cord with plug), 5~12KVA (Input terminal block)
Output
Operating Voltage	180~255V
High Cut Voltage	255V
Low Cut Voltage	180V
Safety Cycle	3 Seconds/ 180 Seconds (Optional)
Frequency	50HZ
Connection Type	0.5-3KVA(Output socket), 5~12KVA(Output terminal block)
Regulation
Regulation %	8%
Number of Taps	7, 6, 5
Transformer Type	Toroidal auto transformer
Regulation Type	Relay type
Indicators

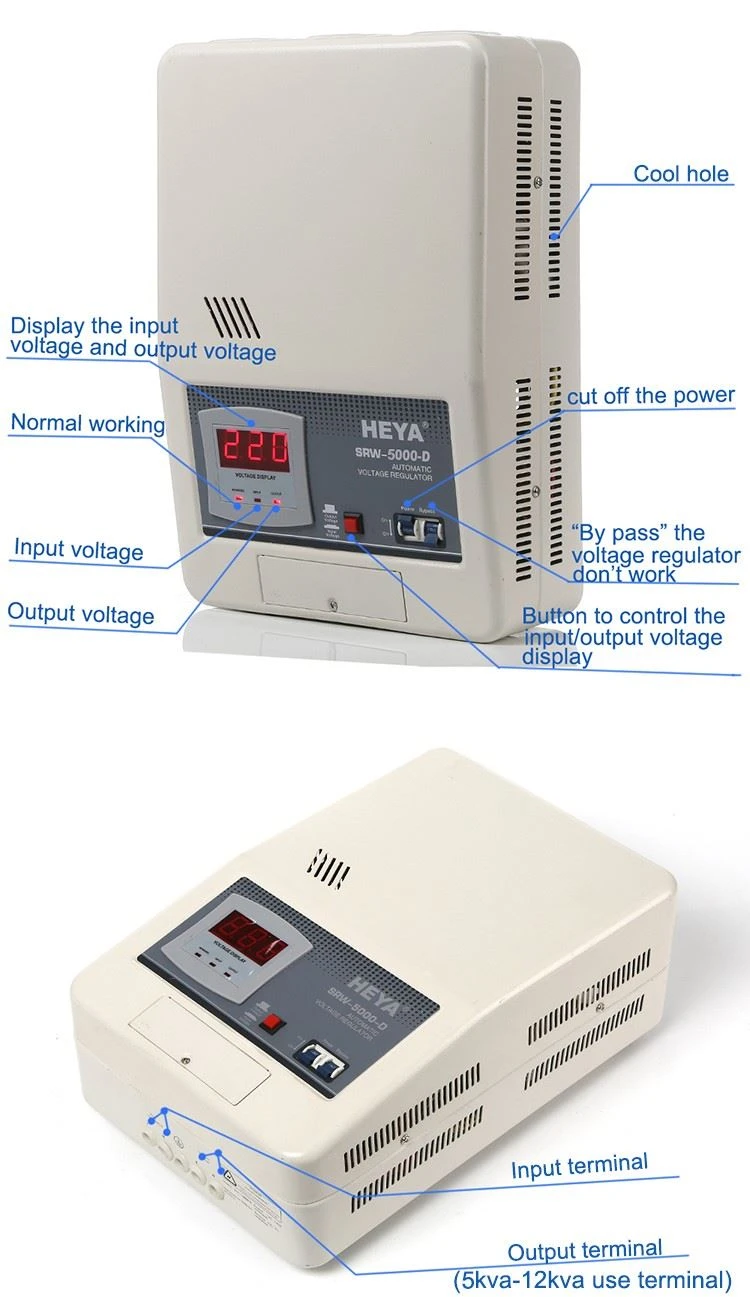

LED display	Input voltage, Output voltage, Delay time
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown
Overload	Auto Shutdown
Over/ Under Voltage	Auto Shutdown

Packaging information:

Model	Unit(PCS)	Device Size(MM)	Package Size(MM)	G.W.(KGS)
SRW-500	4	280180105	465330280	11.50
SRW-1000	4	280180105	465330280	13.50
SRW-1500	4	280180105	465330280	17.60
SRW-2000	4	280180105	465330280	21.10
SRW-3000	4	280180105	465330280	22.52
SRW-5000	2	385265155	445335420	22.75
SRW-8000	2	385265155	445335420	27.95
SRW-10000	2	385265155	445335420	31.35
SRW-12000	1	440300175	535395270	18.00

The advantages of this model

1. Wide Input voltage: AC140~260V or customize.

2. High technology: Programmed control computerized.

3. Fashion design: LED display which can show all protection functions.

4. Quality insurance: Main spare parts made by ourselves, for example, transformer, PCB.

5. Perfect protection function: Over/ low voltage protection, over-heat/ load protection, short circuit protection.

6. Option Function: with voltage regulator and mains supply two kind output voltage choice function, in mains supply.

relatively stable season, the user can put voltage stabilizer in mains supply state, there is no power consumption, it is economic and convenient.

7. High efficiency: More than 95%

Application:

They are suitable in Computer, Test equipment, Light system, Safe alarm system, Ray equipment, Medical equipment, Copymachine,Stereo equipment,Numerical control machine tools, Industrial automation equipment, Color and drying equipment, Test equipment, Hi-Fi equipment etc.

Similar products

Welcome cleck words to inquiry me to get more informations and good price or take order.

1~.Can customized plug for this model. 1PCS also can sell as sample to test.

Company Information

> YUEQING HEYUAN ELECTRONIC TECHNOLOGY CO.,LTD. estabilishen in 2009, is a professional manufacturer focuses on the research, development, production, sale and service of voltage regulator, UPS, Switching power supply, power inverter, solar system.

> We are located in the "China electric appliance capital"--Liushi town with convenient transportationaccess, where is quite close to Shanghai and Ningbo port.

> Dedicate to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

> In recent years, our company has introduced a series of advanced equipment.

> In addition, we have obtained ISO900W, BV, EAC, CE certificates.

> Most of our products acquired design and technical patents, and we ahve unique advanced current zero cross.
