Hey there! As an AC AVR supplier, I've been getting a lot of questions lately about how these things work. So, I thought I'd take a few minutes to break down the principle of AC AVR voltage regulation.
First off, let's talk about what an AC AVR is. An AC Automatic Voltage Regulator (AVR) is a device that helps to maintain a stable voltage output in an electrical system. This is super important because a lot of electrical equipment is designed to work within a specific voltage range. If the voltage is too high or too low, it can cause all sorts of problems, like equipment damage, reduced efficiency, or even safety hazards.
Now, onto the principle. The basic idea behind AC AVR voltage regulation is to sense the output voltage of the electrical system and then adjust it as needed to keep it within the desired range. This is done using a feedback control system.
Here's a step - by - step breakdown of how it works:
Sensing the Voltage
The first step is to measure the output voltage of the electrical system. This is usually done using a voltage sensor, which is a component that can detect the voltage level. The sensor sends a signal to the control circuit of the AVR, which represents the current output voltage.
Comparing the Voltage
Once the control circuit has the voltage reading from the sensor, it compares it to a reference voltage. The reference voltage is the ideal voltage that we want the system to output. If the measured voltage is different from the reference voltage, the control circuit knows that an adjustment is needed.
Making the Adjustment
Based on the comparison, the control circuit then decides whether to increase or decrease the output voltage. To make the adjustment, the AVR uses a power - regulating component, such as a transformer or a solid - state switch.
If the output voltage is too low, the AVR will increase the voltage. For example, in a transformer - based AVR, the control circuit can change the turns ratio of the transformer to step up the voltage. On the other hand, if the output voltage is too high, the AVR will decrease it by adjusting the transformer or using other means to reduce the voltage.
Continuous Monitoring
The process of sensing, comparing, and adjusting is continuous. The AVR keeps monitoring the output voltage all the time and making small adjustments as needed to ensure that the voltage remains stable. This way, even if there are fluctuations in the input voltage or changes in the load of the electrical system, the output voltage stays within the acceptable range.
There are different types of AC AVRs, and each may use slightly different methods to achieve voltage regulation. For instance, some AVRs use a servo - motor - controlled variable autotransformer. In this type, the servo - motor adjusts the position of the tap on the autotransformer to change the output voltage.
Another type is the static AVR, which uses solid - state devices like thyristors or IGBTs (Insulated Gate Bipolar Transistors) for voltage regulation. These solid - state AVRs are often faster and more precise in making adjustments compared to the transformer - based ones.
Now, let's talk about some of the benefits of using an AC AVR.
Protecting Equipment
One of the biggest advantages is that it protects electrical equipment from voltage fluctuations. As I mentioned earlier, many devices are sensitive to voltage changes. An AVR ensures that the equipment receives a stable voltage, which can extend its lifespan and reduce the risk of damage.
Improving Efficiency
A stable voltage also helps to improve the efficiency of electrical equipment. When the voltage is within the optimal range, the equipment can operate more smoothly and use less energy. This can lead to cost savings in the long run.
Ensuring Safety
Voltage fluctuations can pose safety risks, such as electrical fires or shocks. By maintaining a stable voltage, an AVR helps to ensure the safety of both the equipment and the people using it.

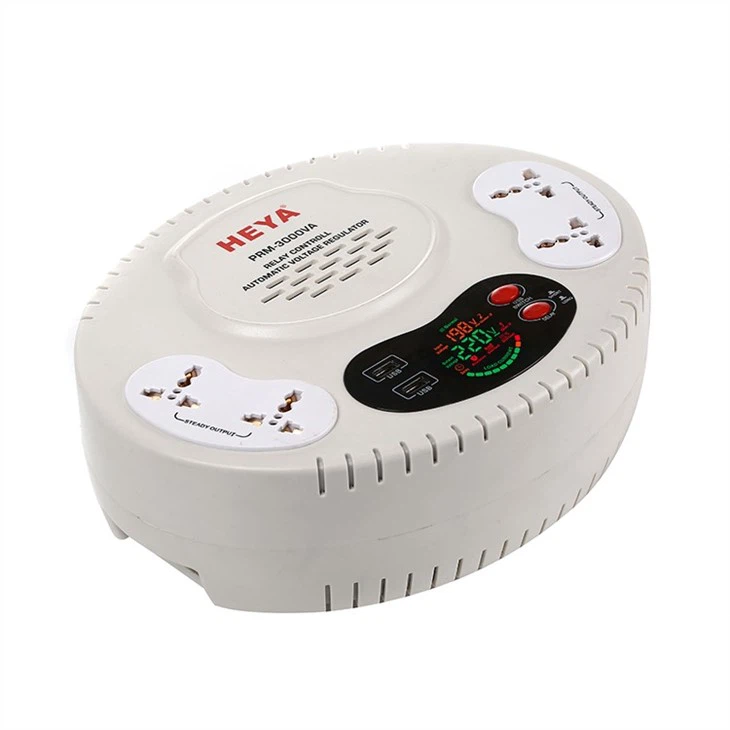

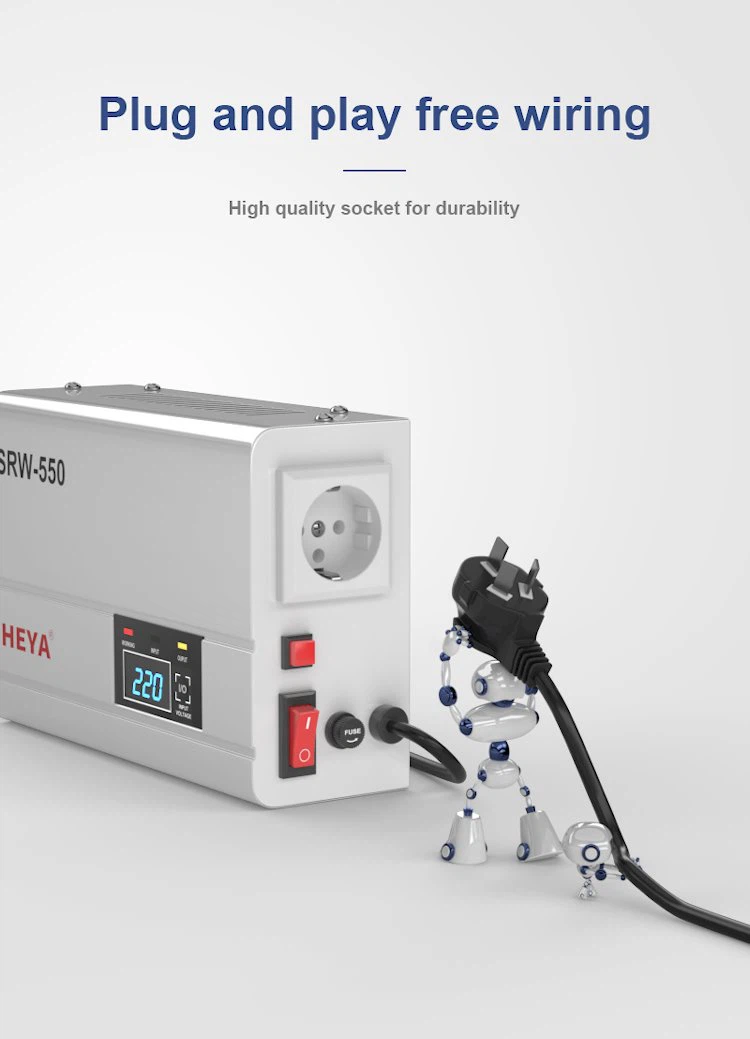

If you're in the market for an AC AVR, we offer a variety of products to meet your needs. We have Variable Ac Regulator, which is great for applications where you need to adjust the voltage over a wide range. Our Portable Voltage Regulator is perfect for situations where you need a compact and easy - to - move solution. And if you have a generator, our Voltage Stabilizer for Generator can help to keep the output voltage of the generator stable.
If you're interested in learning more about our products or have any questions about AC AVR voltage regulation, don't hesitate to reach out. We're here to help you find the best solution for your electrical system. Whether you're a small business owner, an industrial operator, or just someone looking to protect their home appliances, we've got you covered.
In conclusion, understanding the principle of AC AVR voltage regulation is important for anyone who wants to ensure a stable and safe electrical supply. These devices play a crucial role in maintaining the performance and longevity of electrical equipment. So, if you haven't already, consider investing in an AC AVR for your electrical system.
References
- Electric Power Systems: A Conceptual Introduction by Ali A. Chowdhury
- Electrical Engineering: Principles and Applications by Allan R. Hambley
